This tutorial connects the optimisation problems we introduced in Lectures 3 and 4 to PyPSA — Python for Power System Analysis. This tutorial covers some basic concepts of PyPSA, and accompanies the more hands-on introduction in the introduction to PyPSA notebook.

1. Dispatch + Capacity Expansion: Revisiting lecture 3#

The core optimisation problem (single node, joint dispatch and capacity expansion) is


(and further constraints: storage consistency, line limits, etc.)

Each part maps directly to a PyPSA concept:

Math

Meaning

PyPSA

\(t\)

Each time step (hour)

Snapshot

one node

System node / representation

Bus

\(d_t\)

Electricity demand

Load

\(g_{s,t}\)

Generator dispatch

Generator (result: n.generators_t.p)

Remaining important ingredients:

Math

Meaning

PyPSA

\(G_s\)

Installed capacity

p_nom (fixed) or p_nom_extendable=True and p_nom_opt

\(g_{s,t}\)

Generation limited by the CF

p_max_pu time series

\(c_s\)

Marginal cost

marginal_cost

\(C_s\)

Investment cost

capital_cost

Energy balance

Demand = Supply

Built into Bus automatically

Generation limits

Upper bound on dispatch

Built into Generator automatically

2. Single-Node Drawing → PyPSA Components#

Consider a single-node representation of Denmark (DK) with three components:

PyPSA Network

Each physical element maps to a PyPSA component:

ESM concept

PyPSA component

Notes

Variable generator (wind/solar)

Generator

p_max_pu = capacity factor time series

Storage

Store + Link or StorageUnit

Use StorageUnit for fixed E/P ratio (e.g. battery); Store for flexible energy capacity and Link for (dis-)charging

Demand (load)

Load

p_set can be constant or a time series

The bus (Bus) is the node itself — it enforces the energy balance for everything attached to it.

We want to construct a single-node representation of Denmark in PyPSA, with a wind generator, a battery, and a load. Usually we would start with an empty network and add components one by one, but for “simple” networks there is a nice visual tool that can help us in this:

https://nimabahrami.github.io/pypsa-drawer/

We need to create the following components:

  • carriers for AC (for load), wind, and storage

  • a bus for DK

  • a load for DK

  • a generator for DK (wind)

  • a storage unit for DK (battery)

We will do this for one day (24 hours), and we will use the real wind capacity factors for Denmark on 2015-01-01 (24 hours) that we introduced in Lecture 3.

import pypsa
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np

# --- Real wind capacity factors: Denmark, 2015-01-03 (24 hours) ---
wind = pd.read_csv("Problems/data/onshore_wind.csv", sep=";", index_col=0, parse_dates=True)
wind = wind.tz_convert(None)
wind_dnk = wind.loc["2015-01-03", "DNK"]

print("DNK wind capacity factors on 2015-01-03:")
wind_dnk.plot()

Set parameter Username
Set parameter LicenseID to value 2767832
Academic license - for non-commercial use only - expires 2027-01-20

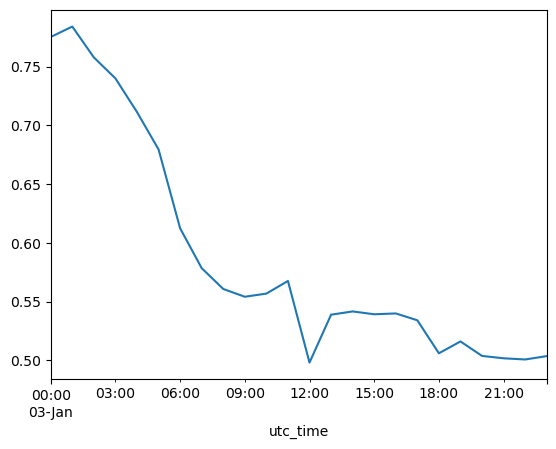

DNK wind capacity factors on 2015-01-03:

<Axes: xlabel='utc_time'>
_images/6f9c116d5a6a24aefe1b019aaad7d1b726bfe3ea5c4e733966be18be02a3a7f6.png

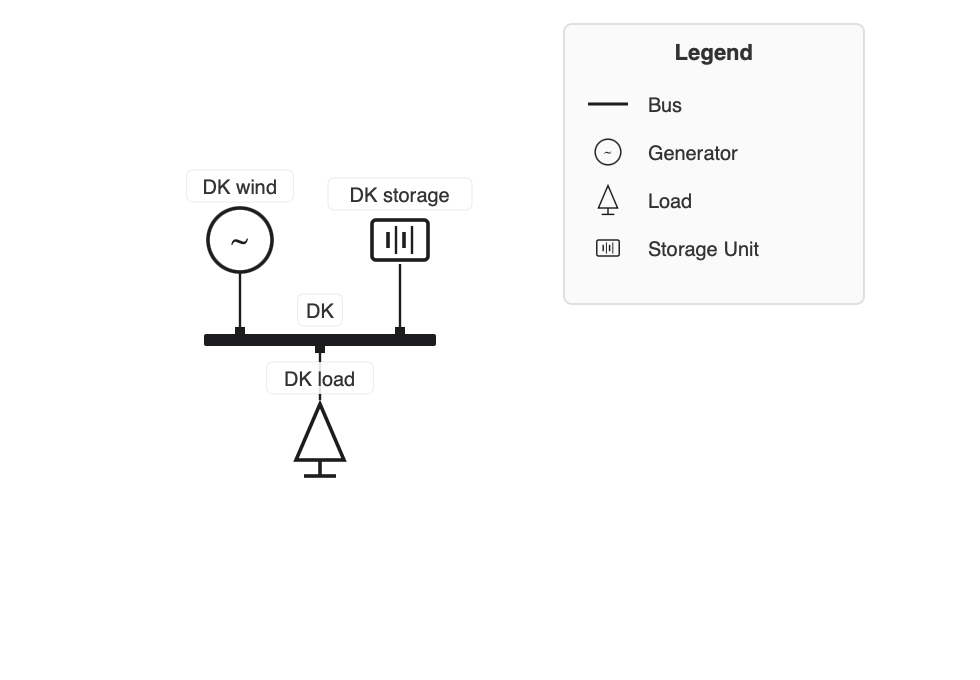

Let’s use the PyPSA drawer to create the network above visually:

https://nimabahrami.github.io/pypsa-drawer/

# Create network
n = pypsa.Network()
n.set_snapshots(range(24))  # Adjust as needed

# --- Carriers ---
n.add(
    "Carrier",
    "Wind",
    co2_emissions=0,
    nice_name="Onshore wind",
    color="0000FF",
)
n.add(
    "Carrier",
    "AC",
    co2_emissions=0,
)
n.add(
    "Carrier",
    "battery",
    co2_emissions=0,
)


# --- Buses ---
n.add(
    "Bus",
    "DK",
    carrier="AC",
)

# --- Generators ---
n.add(
    "Generator",
    "DK wind",
    bus="DK",
    carrier="Wind",
    p_nom=0,
    marginal_cost=0,
    capital_cost=101644,
)

# --- Loads ---
n.add(
    "Load",
    "DK load",
    bus="DK",
    carrier="AC",
    p_set=1000,
)

# --- Storage Units ---
n.add(
    "StorageUnit",
    "DK storage",
    bus="DK",
    carrier="battery",
    p_nom=0,
    max_hours=6,
)

# --- Solve ---
# n.optimize(solver_name="highs")  # Uncomment to solve
# n.statistics()  # View results

We can inspect the network to see what we added:

n

PyPSA Network 'Unnamed Network'
-------------------------------
Components:
 - Bus: 1
 - Carrier: 3
 - Generator: 1
 - Load: 1
 - StorageUnit: 1
Snapshots: 24

We can check which generators we have, their names, buses, carriers, current capacities (p_nom), capacity factors (p_max_pu), capital and marginal costs (and other parameters):

n.generators[["bus", "carrier", "p_nom", "p_max_pu", "capital_cost", "marginal_cost"]].T
name DK wind
bus DK
carrier Wind
p_nom 0.0
p_max_pu 1.0
capital_cost 101644.0
marginal_cost 0.0

At this point, we want to add the capacity factors from before, so we will actually regenerate the network similarly, but including snapshots and time series data. We will also reuse the costs we have used in the exercises for both battery storage and onshore wind. We assume a fixed energy to power ratio of 6 hours for the battery, so we can use a StorageUnit instead of a Store + Link combination.

# Create network
n = pypsa.Network()
# Add snapshot (time steps) to the network:
n.set_snapshots(wind_dnk.index)  # NOTE THE DIFFERENCE

# --- Carriers ---
n.add(
    "Carrier",
    "Wind",
    co2_emissions=0, # not needed at this point, but we will introduce CO2 limits later in Lecture 9
    nice_name="Onshore wind", # for plotting purposes
)
n.add(
    "Carrier",
    "AC",
)
n.add(
    "Carrier",
    "battery",
)


# --- Buses ---
n.add(
    "Bus",
    "DK",
    carrier="AC",
)

# --- Generators ---
n.add(
    "Generator",
    "DK wind",
    bus="DK",
    carrier="Wind",
    p_nom=0,
    marginal_cost=0,
    capital_cost=101644,
    p_max_pu=wind_dnk.values, # NOTE THE DIFFERENCE, we add the capacity factors
    p_nom_extendable=True, # Allow capacity expansion
)

# --- Loads ---
n.add(
    "Load",
    "DK load",
    bus="DK",
    p_set=pd.Series(1000, index=wind_dnk.index),  # NOTE THE DIFFERENCE, we add a time series of demand, here it is fixed
)

# --- Storage Units ---
n.add(
    "StorageUnit",
    "DK storage",
    bus="DK",
    carrier="battery",
    p_nom=0,
    max_hours=6, # fixed ratio of energy capacity to power capacity: 6 hours of storage at full power
    capital_cost=102042,
    marginal_cost=0,
    p_nom_extendable=True,  # Allow capacity expansion
)

n.generators[["bus", "carrier", "p_nom", "p_max_pu", "capital_cost", "marginal_cost"]].T
name DK wind
bus DK
carrier Wind
p_nom 0.0
p_max_pu 1.0
capital_cost 101644.0
marginal_cost 0.0

We can now check whether the capacity factors were added correctly:

print(n.generators_t.p_max_pu)

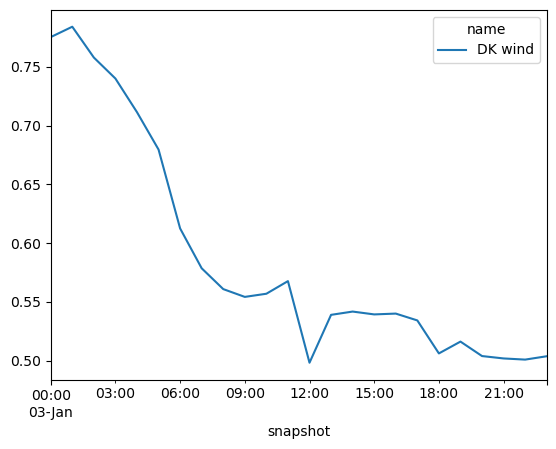

n.generators_t.p_max_pu.plot()

name                  DK wind
snapshot
2015-01-03 00:00:00  0.775336
2015-01-03 01:00:00  0.784170
2015-01-03 02:00:00  0.757938
2015-01-03 03:00:00  0.740065
2015-01-03 04:00:00  0.711429
2015-01-03 05:00:00  0.679621
2015-01-03 06:00:00  0.612471
2015-01-03 07:00:00  0.578539
2015-01-03 08:00:00  0.560825
2015-01-03 09:00:00  0.554192
2015-01-03 10:00:00  0.556877
2015-01-03 11:00:00  0.567621
2015-01-03 12:00:00  0.498158
2015-01-03 13:00:00  0.538912
2015-01-03 14:00:00  0.541701
2015-01-03 15:00:00  0.539283
2015-01-03 16:00:00  0.539980
2015-01-03 17:00:00  0.534161
2015-01-03 18:00:00  0.506076
2015-01-03 19:00:00  0.516142
2015-01-03 20:00:00  0.503830
2015-01-03 21:00:00  0.501798
2015-01-03 22:00:00  0.500812
2015-01-03 23:00:00  0.503667

<Axes: xlabel='snapshot'>
_images/fce9c2b46f95eb9ec62439426107e8b99a604fe03efd3e3399b706f076884d81.png

Same for the load:

print(n.loads_t.p_set)

name                 DK load
snapshot
2015-01-03 00:00:00   1000.0
2015-01-03 01:00:00   1000.0
2015-01-03 02:00:00   1000.0
2015-01-03 03:00:00   1000.0
2015-01-03 04:00:00   1000.0
2015-01-03 05:00:00   1000.0
2015-01-03 06:00:00   1000.0
2015-01-03 07:00:00   1000.0
2015-01-03 08:00:00   1000.0
2015-01-03 09:00:00   1000.0
2015-01-03 10:00:00   1000.0
2015-01-03 11:00:00   1000.0
2015-01-03 12:00:00   1000.0
2015-01-03 13:00:00   1000.0
2015-01-03 14:00:00   1000.0
2015-01-03 15:00:00   1000.0
2015-01-03 16:00:00   1000.0
2015-01-03 17:00:00   1000.0
2015-01-03 18:00:00   1000.0
2015-01-03 19:00:00   1000.0
2015-01-03 20:00:00   1000.0
2015-01-03 21:00:00   1000.0
2015-01-03 22:00:00   1000.0
2015-01-03 23:00:00   1000.0

We now optimise the network to find the optimal dispatch and capacity expansion with n.optimize():

n.optimize(solver_name="gurobi")  # Solve

INFO:linopy.model: Solve problem using Gurobi solver
INFO:linopy.io: Writing time: 0.04s

Set parameter Username

INFO:gurobipy:Set parameter Username

Set parameter LicenseID to value 2767832

INFO:gurobipy:Set parameter LicenseID to value 2767832

Academic license - for non-commercial use only - expires 2027-01-20

INFO:gurobipy:Academic license - for non-commercial use only - expires 2027-01-20

Read LP format model from file /private/var/folders/zg/by4_k0616s98pw41wld9475c0000gp/T/linopy-problem-s_e3bvnc.lp

INFO:gurobipy:Read LP format model from file /private/var/folders/zg/by4_k0616s98pw41wld9475c0000gp/T/linopy-problem-s_e3bvnc.lp

Reading time = 0.00 seconds

INFO:gurobipy:Reading time = 0.00 seconds

obj: 242 rows, 98 columns, 457 nonzeros

INFO:gurobipy:obj: 242 rows, 98 columns, 457 nonzeros

Gurobi Optimizer version 13.0.0 build v13.0.0rc1 (mac64[arm] - Darwin 25.2.0 25C56)

INFO:gurobipy:Gurobi Optimizer version 13.0.0 build v13.0.0rc1 (mac64[arm] - Darwin 25.2.0 25C56)



INFO:gurobipy:

CPU model: Apple M3

INFO:gurobipy:CPU model: Apple M3

Thread count: 8 physical cores, 8 logical processors, using up to 8 threads

INFO:gurobipy:Thread count: 8 physical cores, 8 logical processors, using up to 8 threads



INFO:gurobipy:

Optimize a model with 242 rows, 98 columns and 457 nonzeros (Min)

INFO:gurobipy:Optimize a model with 242 rows, 98 columns and 457 nonzeros (Min)

Model fingerprint: 0x689c9207

INFO:gurobipy:Model fingerprint: 0x689c9207

Model has 2 linear objective coefficients

INFO:gurobipy:Model has 2 linear objective coefficients

Coefficient statistics:

INFO:gurobipy:Coefficient statistics:

  Matrix range     [5e-01, 6e+00]

INFO:gurobipy:  Matrix range     [5e-01, 6e+00]

  Objective range  [1e+05, 1e+05]

INFO:gurobipy:  Objective range  [1e+05, 1e+05]

  Bounds range     [0e+00, 0e+00]

INFO:gurobipy:  Bounds range     [0e+00, 0e+00]

  RHS range        [1e+03, 1e+03]

INFO:gurobipy:  RHS range        [1e+03, 1e+03]

Presolve removed 101 rows and 2 columns

INFO:gurobipy:Presolve removed 101 rows and 2 columns

Presolve time: 0.00s

INFO:gurobipy:Presolve time: 0.00s

Presolved: 141 rows, 96 columns, 353 nonzeros

INFO:gurobipy:Presolved: 141 rows, 96 columns, 353 nonzeros



INFO:gurobipy:

Iteration    Objective       Primal Inf.    Dual Inf.      Time

INFO:gurobipy:Iteration    Objective       Primal Inf.    Dual Inf.      Time

       0    1.3096551e+08   1.728171e+03   0.000000e+00      0s

INFO:gurobipy:       0    1.3096551e+08   1.728171e+03   0.000000e+00      0s

      49    1.9626514e+08   0.000000e+00   0.000000e+00      0s

INFO:gurobipy:      49    1.9626514e+08   0.000000e+00   0.000000e+00      0s



INFO:gurobipy:

Solved in 49 iterations and 0.00 seconds (0.00 work units)

INFO:gurobipy:Solved in 49 iterations and 0.00 seconds (0.00 work units)

Optimal objective  1.962651445e+08

INFO:gurobipy:Optimal objective  1.962651445e+08
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 98 primals, 242 duals
Objective: 1.96e+08
Solver model: available
Solver message: 2

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-ext-p-lower, Generator-ext-p-upper, StorageUnit-ext-p_dispatch-lower, StorageUnit-ext-p_dispatch-upper, StorageUnit-ext-p_store-lower, StorageUnit-ext-p_store-upper, StorageUnit-ext-state_of_charge-lower, StorageUnit-ext-state_of_charge-upper, StorageUnit-energy_balance were not assigned to the network.

('ok', 'optimal')

Note that it outputs the optimal objective (total system costs), but it also saved shadow prices (dual variables / KKT or Lagrange multipliers). What is their meaning? Which one of them corresponds to the electricity price?

Furthermore we have outputs such like termination condition: optimal or ('ok', 'optimal'). This signifies that the optimisation problem was solve to optimality (and therefore also was feasible).

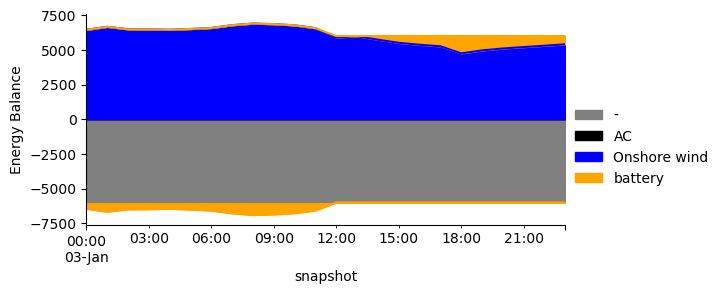

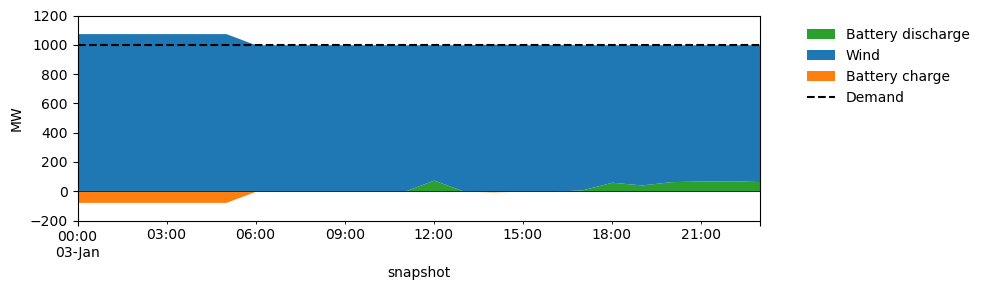

Let’s plot the dispatch and behaviour of storage, generation, and load:

fig, ax = plt.subplots(figsize=(10, 3))


# In order to create a stackplot we need to separate the positive and negative parts, using the clip method.
bat_dis = n.storage_units_t.p.clip(lower=0)  # positive: discharge
bat_ch  = n.storage_units_t.p.clip(upper=0)  # negative: charging

# Note that p > 0 in a bus means injection into the bus (i.e. generation or in this case discharge from the battery into the bus).

# Stack wind + battery discharge together above 0
supply = pd.concat([
    bat_dis.rename(columns={"DK storage": "Battery discharge"}),
    n.generators_t.p.rename(columns={"DK wind": "Wind"}),
], axis=1)
supply.plot.area(ax=ax, linewidth=0, stacked=True,
                 color=["#2ca02c", "#1f77b4"])

# Battery charging below 0 (separate call is fine here — it naturally starts from 0 and goes negative)
bat_ch.rename(columns={"DK storage": "Battery charge"}).plot.area(
    ax=ax, linewidth=0, stacked=True, color=["#ff7f0e"])

# Demand (constant)
n.loads_t.p_set.sum(axis=1).plot(ax=ax, color="black", linestyle="--", label="Demand")

ax.axhline(0, color="black", linewidth=0.5)
ax.set_ylabel("MW")
ax.set_ylim(-200, 1200)
ax.legend(frameon=False, bbox_to_anchor=(1.05, 1))
plt.tight_layout()

/opt/homebrew/Caskroom/miniforge/base/envs/integrated-energy-grids/lib/python3.13/site-packages/pandas/plotting/_matplotlib/core.py:1800: UserWarning:

Attempting to set identical low and high ylims makes transformation singular; automatically expanding.
_images/ca345cb0bd85ad95cb470eea44b0e66414a46a0acca9e85e5a0d638507364d63.png

3. Two Nodes: DK and DE#

Following up on the last lectures where we introduced networks, we so far used networkX to represent the topology. We can keep using PyPSA which has a network representation that utilises networkX under the hood. The convenient thing is that much of the physical properties (power flow, later other flows) are automatically taken care of.

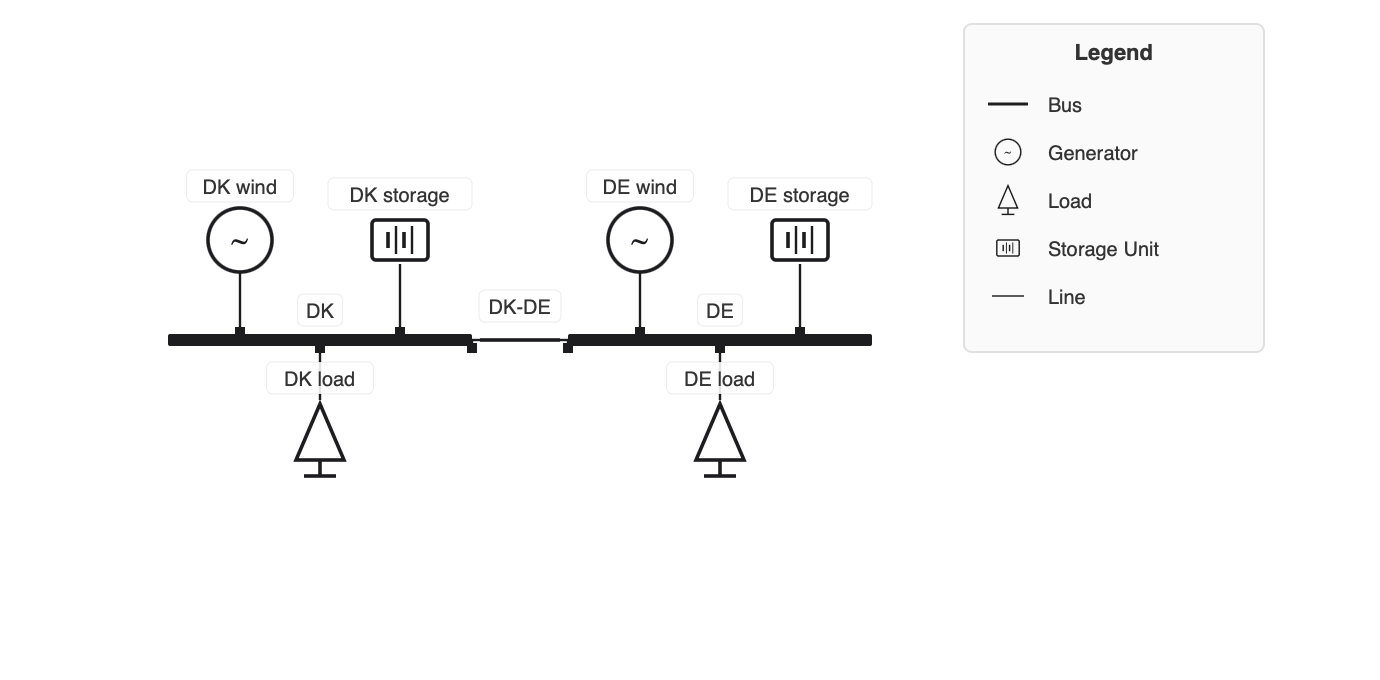

PyPSA Network

Each physical element maps to a PyPSA component:

D ESM concept

PyPSA component

Notes

Generator

p_max_pu = capacity factor time series

Storage

Store + Link or StorageUnit

Use StorageUnit for fixed E/P ratio (e.g. battery); Store for flexible energy capacity

Demand (load)

Load

p_set can be constant or a time series

AC transmission with KVL

Line

Meshed grids, requires reactance x; linearised power flow

In general, we can decide whether to use linearised or optimal power flow in PyPSA (see our discussions in the lecture).

In this specific example where we have one line connecting two nodes, we can actually just use net-transfer capacities (NTC).

The energy balance now holds at each bus separately:

\[\sum_s g_{i,s,t} + f_{\ell,t} = d_{i,t} \qquad \forall i \in \{\text{DK, DE}\},\; \forall t\]

where \(f_{\ell,t}\) is the net power injected at bus \(i\) from the line (positive = import, negative = export), subject to

\[|f_{\ell,t}| \leq F_\ell\]

PyPSA writes both constraints automatically from the network topology. You only need to specify which bus each component is attached to.

Let’s add the second bus for Germany, with a higher load, battery storage and a generator (wind):

We update the wind time series to include both DK and DE:

# --- Real wind capacity factors: Denmark and Germany, 2015-01-03 (24 hours) ---
wind = pd.read_csv("Problems/data/onshore_wind.csv", sep=";", index_col=0, parse_dates=True)
wind = wind.tz_convert(None)
wind_dnk_deu = wind.loc["2015-01-03", ["DNK", "DEU"]]

print("DNK, DEU wind capacity factors on 2015-01-03:")

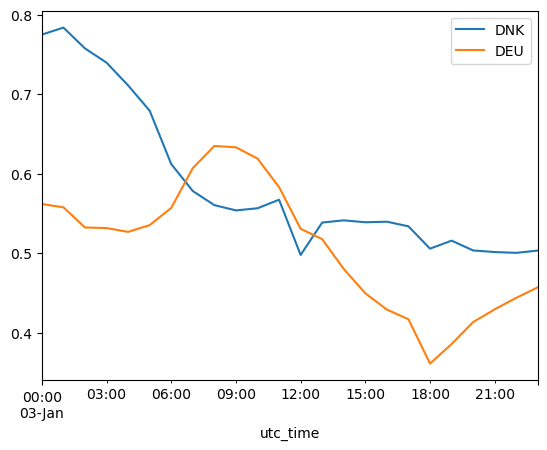

wind_dnk_deu.plot()

DNK, DEU wind capacity factors on 2015-01-03:

<Axes: xlabel='utc_time'>
_images/cfcded7d84cffd7a0dab02b1b96ead729cb404c329c9b597771b4a7f6e507cdb.png
# Create network
n = pypsa.Network()
n.set_snapshots(wind_dnk_deu.index)  # Adjust as needed

# --- Carriers ---
n.add(
    "Carrier",
    "Wind",
    nice_name="Onshore wind",
    color = "blue",
)
n.add(
    "Carrier",
    "AC",
    color="black",
)
n.add(
    "Carrier",
    "battery",
    color="orange",
)

# --- Buses ---
n.add(
    "Bus",
    "DK",
    carrier="AC",
)
n.add(
    "Bus",
    "DE",
    carrier="AC",
)

# --- Generators ---
n.add(
    "Generator",
    "DK wind",
    bus="DK",
    carrier="Wind",
    p_nom=0,
    p_nom_extendable=True,
    p_max_pu=wind_dnk_deu["DNK"].values,
    marginal_cost=0,
    capital_cost=101644,
)
n.add(
    "Generator",
    "DE wind",
    bus="DE",
    carrier="Wind",
    p_nom=0,
    p_nom_extendable=True,
    p_max_pu=wind_dnk_deu["DEU"].values,
    marginal_cost=0,
    capital_cost=101644,
)

# --- Loads ---
n.add(
    "Load",
    "DK load",
    bus="DK",
    p_set=pd.Series(1000, index=wind_dnk_deu.index),  # NOTE THE DIFFERENCE
)
n.add(
    "Load",
    "DE load",
    bus="DE",
    p_set=pd.Series(5000, index=wind_dnk_deu.index),  # NOTE THE DIFFERENCE
)

# --- Storage Units ---
n.add(
    "StorageUnit",
    "DK storage",
    bus="DK",
    carrier="battery",
    p_nom=0,
    p_nom_extendable=True,
    max_hours=6,
    capital_cost=102042,
    marginal_cost=0,
)
n.add(
    "StorageUnit",
    "DE storage",
    bus="DE",
    carrier="battery",
    p_nom=0,
    max_hours=6,
    capital_cost=102042,
    marginal_cost=0,
    p_nom_extendable=True,  # Allow capacity expansion
)

# --- Lines ---
n.add(
    "Line",
    "DK-DE",
    bus0="DK",
    bus1="DE",
    s_nom=1500,       # MW: allow some fixed capacity. Do not allow for capacity expansion at this point.
)


n.optimize(solver_name="gurobi")

WARNING:pypsa.consistency:The following lines have zero x, which could break the linear load flow:
Index(['DK-DE'], dtype='object', name='name')
WARNING:pypsa.consistency:The following lines have zero r, which could break the linear load flow:
Index(['DK-DE'], dtype='object', name='name')
INFO:linopy.model: Solve problem using Gurobi solver
INFO:linopy.io: Writing time: 0.04s

Set parameter Username

INFO:gurobipy:Set parameter Username

Set parameter LicenseID to value 2767832

INFO:gurobipy:Set parameter LicenseID to value 2767832

Academic license - for non-commercial use only - expires 2027-01-20

INFO:gurobipy:Academic license - for non-commercial use only - expires 2027-01-20

Read LP format model from file /private/var/folders/zg/by4_k0616s98pw41wld9475c0000gp/T/linopy-problem-pt8g_r4a.lp

INFO:gurobipy:Read LP format model from file /private/var/folders/zg/by4_k0616s98pw41wld9475c0000gp/T/linopy-problem-pt8g_r4a.lp

Reading time = 0.00 seconds

INFO:gurobipy:Reading time = 0.00 seconds

obj: 532 rows, 220 columns, 1010 nonzeros

INFO:gurobipy:obj: 532 rows, 220 columns, 1010 nonzeros

Gurobi Optimizer version 13.0.0 build v13.0.0rc1 (mac64[arm] - Darwin 25.2.0 25C56)

INFO:gurobipy:Gurobi Optimizer version 13.0.0 build v13.0.0rc1 (mac64[arm] - Darwin 25.2.0 25C56)



INFO:gurobipy:

CPU model: Apple M3

INFO:gurobipy:CPU model: Apple M3

Thread count: 8 physical cores, 8 logical processors, using up to 8 threads

INFO:gurobipy:Thread count: 8 physical cores, 8 logical processors, using up to 8 threads



INFO:gurobipy:

Optimize a model with 532 rows, 220 columns and 1010 nonzeros (Min)

INFO:gurobipy:Optimize a model with 532 rows, 220 columns and 1010 nonzeros (Min)

Model fingerprint: 0x5c25bca3

INFO:gurobipy:Model fingerprint: 0x5c25bca3

Model has 4 linear objective coefficients

INFO:gurobipy:Model has 4 linear objective coefficients

Coefficient statistics:

INFO:gurobipy:Coefficient statistics:

  Matrix range     [4e-01, 6e+00]

INFO:gurobipy:  Matrix range     [4e-01, 6e+00]

  Objective range  [1e+05, 1e+05]

INFO:gurobipy:  Objective range  [1e+05, 1e+05]

  Bounds range     [0e+00, 0e+00]

INFO:gurobipy:  Bounds range     [0e+00, 0e+00]

  RHS range        [1e+03, 5e+03]

INFO:gurobipy:  RHS range        [1e+03, 5e+03]

Presolve removed 249 rows and 5 columns

INFO:gurobipy:Presolve removed 249 rows and 5 columns

Presolve time: 0.00s

INFO:gurobipy:Presolve time: 0.00s

Presolved: 283 rows, 215 columns, 752 nonzeros

INFO:gurobipy:Presolved: 283 rows, 215 columns, 752 nonzeros



INFO:gurobipy:

Iteration    Objective       Primal Inf.    Dual Inf.      Time

INFO:gurobipy:Iteration    Objective       Primal Inf.    Dual Inf.      Time

       0    6.3215053e+08   1.756294e+04   0.000000e+00      0s

INFO:gurobipy:       0    6.3215053e+08   1.756294e+04   0.000000e+00      0s

     187    1.2839720e+09   0.000000e+00   0.000000e+00      0s

INFO:gurobipy:     187    1.2839720e+09   0.000000e+00   0.000000e+00      0s



INFO:gurobipy:

Solved in 187 iterations and 0.01 seconds (0.00 work units)

INFO:gurobipy:Solved in 187 iterations and 0.01 seconds (0.00 work units)

Optimal objective  1.283971973e+09

INFO:gurobipy:Optimal objective  1.283971973e+09
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 220 primals, 532 duals
Objective: 1.28e+09
Solver model: available
Solver message: 2

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Generator-ext-p-lower, Generator-ext-p-upper, Line-fix-s-lower, Line-fix-s-upper, StorageUnit-ext-p_dispatch-lower, StorageUnit-ext-p_dispatch-upper, StorageUnit-ext-p_store-lower, StorageUnit-ext-p_store-upper, StorageUnit-ext-state_of_charge-lower, StorageUnit-ext-state_of_charge-upper, StorageUnit-energy_balance were not assigned to the network.

('ok', 'optimal')

4. Under the Hood: PyPSA Architecture and Model Internals#

We just called n.optimize(solver_name="gurobi") — it skips a lot of steps which took us some time before and different packages.

The big picture: how PyPSA connects several steps into one mathematical model and package#

  Inputs (pandas)                          constraints
  - weather / capacity factors             by default
  - costs, tech parameters   ──────►  Mathematical model  ──────►  Optimisation  ──────►  Optimal    ──────►  Analysis    ──────► Plotting
                                       of an energy network        problem                 system              (pandas)          (matplotlib)
  Inputs (networkX topology)                                        Gurobi / HiGHS
  - buses, links, lines       ──────►                              via linopy
                                                                    (n.model)
                                                                         │
                                                               n.pf()   n.lpf()

  • pandas carries all time-series and static data (capacity factors, demand, costs).

  • networkX-style topology is encoded in n.buses, n.lines, n.links, etc.

  • PyPSA translates your network description into a linopy Model object (n.model).

  • The solver (Gurobi or HiGHS) solves the LP/MILP and results land back in pandas DataFrames.

  • In the capacity expansion and dispatch optimisation, we use n.lpf() (linearised DC), as the PyPSA optimisation problem is linear. Only after dispatch we can also use n.pf() (full AC) for power flow analysis .

Inspecting the linopy model#

After n.optimize(), the linopy Model is stored at n.model. We can inspect its variables, constraints and objective without re-solving:

m = n.model          # linopy.Model — already built by n.optimize()
print(type(m))
print(m)

<class 'linopy.model.Model'>
Linopy LP model
===============

Variables:
----------
 * Generator-p_nom (name)
 * StorageUnit-p_nom (name)
 * Generator-p (snapshot, name)
 * Line-s (snapshot, name)
 * StorageUnit-p_dispatch (snapshot, name)
 * StorageUnit-p_store (snapshot, name)
 * StorageUnit-state_of_charge (snapshot, name)

Constraints:
------------
 * Generator-ext-p_nom-lower (name)
 * StorageUnit-ext-p_nom-lower (name)
 * Generator-ext-p-lower (snapshot, name)
 * Generator-ext-p-upper (snapshot, name)
 * Line-fix-s-lower (snapshot, name)
 * Line-fix-s-upper (snapshot, name)
 * StorageUnit-ext-p_dispatch-lower (snapshot, name)
 * StorageUnit-ext-p_dispatch-upper (snapshot, name)
 * StorageUnit-ext-p_store-lower (snapshot, name)
 * StorageUnit-ext-p_store-upper (snapshot, name)
 * StorageUnit-ext-state_of_charge-lower (snapshot, name)
 * StorageUnit-ext-state_of_charge-upper (snapshot, name)
 * Bus-nodal_balance (name, snapshot)
 * StorageUnit-energy_balance (snapshot, name)

Status:
-------
ok

# All decision variables
m.variables

linopy.model.Variables
----------------------
 * Generator-p_nom (name)
 * StorageUnit-p_nom (name)
 * Generator-p (snapshot, name)
 * Line-s (snapshot, name)
 * StorageUnit-p_dispatch (snapshot, name)
 * StorageUnit-p_store (snapshot, name)
 * StorageUnit-state_of_charge (snapshot, name)

# Generator dispatch variable: shape = (snapshots × generators)
m['Generator-p']

Variable (snapshot: 24, name: 2)
--------------------------------
[2015-01-03 00:00:00, DK wind]: Generator-p[2015-01-03 00:00:00, DK wind] ∈ [-inf, inf]
[2015-01-03 00:00:00, DE wind]: Generator-p[2015-01-03 00:00:00, DE wind] ∈ [-inf, inf]
[2015-01-03 01:00:00, DK wind]: Generator-p[2015-01-03 01:00:00, DK wind] ∈ [-inf, inf]
[2015-01-03 01:00:00, DE wind]: Generator-p[2015-01-03 01:00:00, DE wind] ∈ [-inf, inf]
[2015-01-03 02:00:00, DK wind]: Generator-p[2015-01-03 02:00:00, DK wind] ∈ [-inf, inf]
[2015-01-03 02:00:00, DE wind]: Generator-p[2015-01-03 02:00:00, DE wind] ∈ [-inf, inf]
[2015-01-03 03:00:00, DK wind]: Generator-p[2015-01-03 03:00:00, DK wind] ∈ [-inf, inf]
		...
[2015-01-03 20:00:00, DE wind]: Generator-p[2015-01-03 20:00:00, DE wind] ∈ [-inf, inf]
[2015-01-03 21:00:00, DK wind]: Generator-p[2015-01-03 21:00:00, DK wind] ∈ [-inf, inf]
[2015-01-03 21:00:00, DE wind]: Generator-p[2015-01-03 21:00:00, DE wind] ∈ [-inf, inf]
[2015-01-03 22:00:00, DK wind]: Generator-p[2015-01-03 22:00:00, DK wind] ∈ [-inf, inf]
[2015-01-03 22:00:00, DE wind]: Generator-p[2015-01-03 22:00:00, DE wind] ∈ [-inf, inf]
[2015-01-03 23:00:00, DK wind]: Generator-p[2015-01-03 23:00:00, DK wind] ∈ [-inf, inf]
[2015-01-03 23:00:00, DE wind]: Generator-p[2015-01-03 23:00:00, DE wind] ∈ [-inf, inf]

# All automatically generated constraints
m.constraints

linopy.model.Constraints
------------------------
 * Generator-ext-p_nom-lower (name)
 * StorageUnit-ext-p_nom-lower (name)
 * Generator-ext-p-lower (snapshot, name)
 * Generator-ext-p-upper (snapshot, name)
 * Line-fix-s-lower (snapshot, name)
 * Line-fix-s-upper (snapshot, name)
 * StorageUnit-ext-p_dispatch-lower (snapshot, name)
 * StorageUnit-ext-p_dispatch-upper (snapshot, name)
 * StorageUnit-ext-p_store-lower (snapshot, name)
 * StorageUnit-ext-p_store-upper (snapshot, name)
 * StorageUnit-ext-state_of_charge-lower (snapshot, name)
 * StorageUnit-ext-state_of_charge-upper (snapshot, name)
 * Bus-nodal_balance (name, snapshot)
 * StorageUnit-energy_balance (snapshot, name)

# Nodal energy balance — one equation per bus per snapshot
m.constraints['Bus-nodal_balance']

Constraint `Bus-nodal_balance` [name: 2, snapshot: 24]:
-------------------------------------------------------
[DK, 2015-01-03 00:00:00]: +1 Generator-p[2015-01-03 00:00:00, DK wind] + 1 StorageUnit-p_dispatch[2015-01-03 00:00:00, DK storage] - 1 StorageUnit-p_store[2015-01-03 00:00:00, DK storage] - 1 Line-s[2015-01-03 00:00:00, DK-DE] = 1000.0
[DK, 2015-01-03 01:00:00]: +1 Generator-p[2015-01-03 01:00:00, DK wind] + 1 StorageUnit-p_dispatch[2015-01-03 01:00:00, DK storage] - 1 StorageUnit-p_store[2015-01-03 01:00:00, DK storage] - 1 Line-s[2015-01-03 01:00:00, DK-DE] = 1000.0
[DK, 2015-01-03 02:00:00]: +1 Generator-p[2015-01-03 02:00:00, DK wind] + 1 StorageUnit-p_dispatch[2015-01-03 02:00:00, DK storage] - 1 StorageUnit-p_store[2015-01-03 02:00:00, DK storage] - 1 Line-s[2015-01-03 02:00:00, DK-DE] = 1000.0
[DK, 2015-01-03 03:00:00]: +1 Generator-p[2015-01-03 03:00:00, DK wind] + 1 StorageUnit-p_dispatch[2015-01-03 03:00:00, DK storage] - 1 StorageUnit-p_store[2015-01-03 03:00:00, DK storage] - 1 Line-s[2015-01-03 03:00:00, DK-DE] = 1000.0
[DK, 2015-01-03 04:00:00]: +1 Generator-p[2015-01-03 04:00:00, DK wind] + 1 StorageUnit-p_dispatch[2015-01-03 04:00:00, DK storage] - 1 StorageUnit-p_store[2015-01-03 04:00:00, DK storage] - 1 Line-s[2015-01-03 04:00:00, DK-DE] = 1000.0
[DK, 2015-01-03 05:00:00]: +1 Generator-p[2015-01-03 05:00:00, DK wind] + 1 StorageUnit-p_dispatch[2015-01-03 05:00:00, DK storage] - 1 StorageUnit-p_store[2015-01-03 05:00:00, DK storage] - 1 Line-s[2015-01-03 05:00:00, DK-DE] = 1000.0
[DK, 2015-01-03 06:00:00]: +1 Generator-p[2015-01-03 06:00:00, DK wind] + 1 StorageUnit-p_dispatch[2015-01-03 06:00:00, DK storage] - 1 StorageUnit-p_store[2015-01-03 06:00:00, DK storage] - 1 Line-s[2015-01-03 06:00:00, DK-DE] = 1000.0
		...
[DE, 2015-01-03 17:00:00]: +1 Generator-p[2015-01-03 17:00:00, DE wind] + 1 StorageUnit-p_dispatch[2015-01-03 17:00:00, DE storage] - 1 StorageUnit-p_store[2015-01-03 17:00:00, DE storage] + 1 Line-s[2015-01-03 17:00:00, DK-DE] = 5000.0
[DE, 2015-01-03 18:00:00]: +1 Generator-p[2015-01-03 18:00:00, DE wind] + 1 StorageUnit-p_dispatch[2015-01-03 18:00:00, DE storage] - 1 StorageUnit-p_store[2015-01-03 18:00:00, DE storage] + 1 Line-s[2015-01-03 18:00:00, DK-DE] = 5000.0
[DE, 2015-01-03 19:00:00]: +1 Generator-p[2015-01-03 19:00:00, DE wind] + 1 StorageUnit-p_dispatch[2015-01-03 19:00:00, DE storage] - 1 StorageUnit-p_store[2015-01-03 19:00:00, DE storage] + 1 Line-s[2015-01-03 19:00:00, DK-DE] = 5000.0
[DE, 2015-01-03 20:00:00]: +1 Generator-p[2015-01-03 20:00:00, DE wind] + 1 StorageUnit-p_dispatch[2015-01-03 20:00:00, DE storage] - 1 StorageUnit-p_store[2015-01-03 20:00:00, DE storage] + 1 Line-s[2015-01-03 20:00:00, DK-DE] = 5000.0
[DE, 2015-01-03 21:00:00]: +1 Generator-p[2015-01-03 21:00:00, DE wind] + 1 StorageUnit-p_dispatch[2015-01-03 21:00:00, DE storage] - 1 StorageUnit-p_store[2015-01-03 21:00:00, DE storage] + 1 Line-s[2015-01-03 21:00:00, DK-DE] = 5000.0
[DE, 2015-01-03 22:00:00]: +1 Generator-p[2015-01-03 22:00:00, DE wind] + 1 StorageUnit-p_dispatch[2015-01-03 22:00:00, DE storage] - 1 StorageUnit-p_store[2015-01-03 22:00:00, DE storage] + 1 Line-s[2015-01-03 22:00:00, DK-DE] = 5000.0
[DE, 2015-01-03 23:00:00]: +1 Generator-p[2015-01-03 23:00:00, DE wind] + 1 StorageUnit-p_dispatch[2015-01-03 23:00:00, DE storage] - 1 StorageUnit-p_store[2015-01-03 23:00:00, DE storage] + 1 Line-s[2015-01-03 23:00:00, DK-DE] = 5000.0

Retrieve results (pandas DataFrames)#

Note that the marginal prices in a capacity expansion problems are stil the dual variables of the energy balance constraint, but include the value of the capacity expansion decision as well. Therefore we cannot directly interpret them as the electricity price like in the dispatch optimisation.

print("Generator dispatch [MW] — first 6 snapshots:")
print(n.generators_t.p.iloc[:6].round(1))

print("\nLine flow DK→DE [MW] — first 6 snapshots: Positive values indicate injection into the line, i.e. flow from DK to DE.")
print(n.lines_t.p0.iloc[:6].round(1))

print("\nMarginal prices [EUR/MWh] — first 6 snapshots:")
print(n.buses_t.marginal_price.iloc[:6].round(2))

Generator dispatch [MW] — first 6 snapshots:
name                 DK wind  DE wind
snapshot
2015-01-03 00:00:00   2530.8   3921.2
2015-01-03 01:00:00   2772.6   3892.4
2015-01-03 02:00:00   2772.6   3715.6
2015-01-03 03:00:00   2772.6   3710.4
2015-01-03 04:00:00   2772.6   3676.7
2015-01-03 05:00:00   2772.6   3736.3

Line flow DK→DE [MW] — first 6 snapshots: Positive values indicate injection into the line, i.e. flow from DK to DE.
name                  DK-DE
snapshot
2015-01-03 00:00:00  1500.0
2015-01-03 01:00:00  1500.0
2015-01-03 02:00:00  1500.0
2015-01-03 03:00:00  1500.0
2015-01-03 04:00:00  1500.0
2015-01-03 05:00:00  1500.0

Marginal prices [EUR/MWh] — first 6 snapshots:
name                  DK       DE
snapshot
2015-01-03 00:00:00  0.0  2244.34
2015-01-03 01:00:00  0.0  2244.34
2015-01-03 02:00:00  0.0  2244.34
2015-01-03 03:00:00  0.0  2244.34
2015-01-03 04:00:00  0.0  2244.34
2015-01-03 05:00:00  0.0  2244.34

n.pf() and n.lpf()#

Method

Physics

When to use

n.pf()

Full AC (Newton–Raphson): voltages, reactive power, line loading

Lecture 6 — OPF; detailed operations

n.lpf()

Linearised DC: active power only

What n.optimize() uses internally; fast


n.pf()              # requires dispatch to be fixed first
n.buses_t.v_mag_pu  # voltage magnitudes
n.lines_t.p0        # active power flows

5. Statistics and Plotting#

n.statistics provides a consistent pandas API for post-processing. Every method returns a pandas.Series and accepts groupby, comps and carrier filters.

n.statistics()
Optimal Capacity Installed Capacity Supply Withdrawal Energy Balance Transmission Capacity Factor Curtailment Capital Expenditure Operational Expenditure Revenue Market Value
Generator Onshore wind 11375.87284 0.0 144000.0000 0.00000 144000.00000 0.00000 0.527432 3185.08535 1.156289e+09 0.0 1.156289e+09 8029.786244
Line AC 1500.00000 1500.0 0.0000 34887.96337 -34887.96337 34887.96337 0.969110 0.00000 0.000000e+00 0.0 -2.795126e+08 NaN
Load - 0.00000 0.0 0.0000 144000.00000 -144000.00000 0.00000 NaN 0.00000 0.000000e+00 0.0 -1.331103e+09 NaN
StorageUnit battery 1251.27647 0.0 7600.2249 7600.22490 0.00000 0.00000 0.506165 30030.63524 1.276828e+08 0.0 1.276828e+08 16799.865010

Capacity#

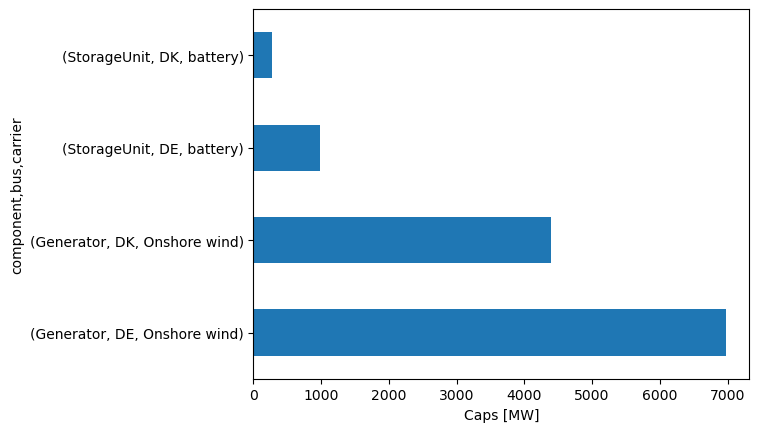

n.statistics.optimal_capacity(components=["Generator", "StorageUnit"], groupby=["bus", "carrier"]).plot(kind="barh", xlabel = "Caps [MW]");
_images/baacaebe5668568d085e36faadfdba651c13ecd0dd4ebdf3004c05699ef40c00.png
n.statistics.optimal_capacity(groupby=["bus", "carrier"])

component    bus  carrier
Generator    DE   Onshore wind    6974.65393
             DK   Onshore wind    4401.21892
Line         DK   AC              1500.00000
StorageUnit  DE   battery          978.62773
             DK   battery          272.64874
dtype: float64

n.statistics.capacity_factor(components=["Generator", "StorageUnit", "Line"], groupby=["bus", "carrier"])

component    bus  carrier
Generator    DE   Onshore wind    0.508460
             DK   Onshore wind    0.557497
StorageUnit  DE   battery         0.500000
             DK   battery         0.528292
Line         DK   AC              0.969110
dtype: float64

n.statistics.curtailment(groupby=["bus", "carrier"])

component    bus  carrier
Generator    DK   Onshore wind     3185.08535
StorageUnit  DE   battery         23487.06559
             DK   battery          6543.56965
dtype: float64

Energy flows#

n.statistics.supply()

component    carrier
Generator    Onshore wind    144000.00000
Line         AC               34887.96337
StorageUnit  battery           7600.22490
dtype: float64

n.statistics.supply(groupby=["bus"])

component    bus
Generator    DE     85112.03663
             DK     58887.96337
Line         DE     34887.96337
StorageUnit  DE      5871.76640
             DK      1728.45850
dtype: float64

n.statistics.withdrawal(groupby=["bus"])

component    bus
Line         DK      34887.96337
Load         DE     120000.00000
             DK      24000.00000
StorageUnit  DE       5871.76640
             DK       1728.45850
dtype: float64

n.statistics.energy_balance(groupby="bus", groupby_time=False)
snapshot 2015-01-03 00:00:00 2015-01-03 01:00:00 2015-01-03 02:00:00 2015-01-03 03:00:00 2015-01-03 04:00:00 2015-01-03 05:00:00 2015-01-03 06:00:00 2015-01-03 07:00:00 2015-01-03 08:00:00 2015-01-03 09:00:00 ... 2015-01-03 14:00:00 2015-01-03 15:00:00 2015-01-03 16:00:00 2015-01-03 17:00:00 2015-01-03 18:00:00 2015-01-03 19:00:00 2015-01-03 20:00:00 2015-01-03 21:00:00 2015-01-03 22:00:00 2015-01-03 23:00:00
component bus
Generator DE 3921.18531 3892.41486 3715.56554 3710.39034 3676.68184 3736.31513 3887.11413 4236.23043 4430.56521 4419.05703 ... 3351.60717 3137.84798 2994.93034 2910.02788 2521.37227 2692.69767 2885.49105 2997.51794 3098.11337 3190.68098
DK 2530.75299 2772.64874 2772.64874 2772.64874 2772.64874 2772.64874 2695.61895 2546.27679 2468.31360 2439.12031 ... 2384.14469 2373.50254 2376.57019 2350.95950 2227.35126 2271.65393 2217.46613 2208.52285 2204.18325 2216.74873
Line DK -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 ... -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1328.67460 -1490.11486 -1335.57677 -1476.83198 -1216.74873
DE 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 ... 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1328.67460 1490.11486 1335.57677 1476.83198 1216.74873
Load DE -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 ... -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000
DK -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 ... -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000
StorageUnit DE -421.18531 -392.41486 -215.56554 -210.39034 -176.68184 -236.31513 -387.11413 -736.23043 -930.56521 -919.05703 ... 148.39283 362.15202 505.06966 589.97212 978.62773 978.62773 624.39409 666.90529 425.05464 592.57029
DK -30.75299 -272.64874 -272.64874 -272.64874 -272.64874 -272.64874 -195.61895 -46.27679 31.68640 60.87969 ... 115.85531 126.49746 123.42981 149.04050 272.64874 57.02067 272.64874 127.05392 272.64874 NaN

8 rows × 24 columns

n.statistics.energy_balance(groupby=["bus", "carrier"], groupby_time=False)
snapshot 2015-01-03 00:00:00 2015-01-03 01:00:00 2015-01-03 02:00:00 2015-01-03 03:00:00 2015-01-03 04:00:00 2015-01-03 05:00:00 2015-01-03 06:00:00 2015-01-03 07:00:00 2015-01-03 08:00:00 2015-01-03 09:00:00 ... 2015-01-03 14:00:00 2015-01-03 15:00:00 2015-01-03 16:00:00 2015-01-03 17:00:00 2015-01-03 18:00:00 2015-01-03 19:00:00 2015-01-03 20:00:00 2015-01-03 21:00:00 2015-01-03 22:00:00 2015-01-03 23:00:00
component bus carrier
Generator DE Onshore wind 3921.18531 3892.41486 3715.56554 3710.39034 3676.68184 3736.31513 3887.11413 4236.23043 4430.56521 4419.05703 ... 3351.60717 3137.84798 2994.93034 2910.02788 2521.37227 2692.69767 2885.49105 2997.51794 3098.11337 3190.68098
DK Onshore wind 2530.75299 2772.64874 2772.64874 2772.64874 2772.64874 2772.64874 2695.61895 2546.27679 2468.31360 2439.12031 ... 2384.14469 2373.50254 2376.57019 2350.95950 2227.35126 2271.65393 2217.46613 2208.52285 2204.18325 2216.74873
Line DK AC -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 ... -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1500.00000 -1328.67460 -1490.11486 -1335.57677 -1476.83198 -1216.74873
DE AC 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 ... 1500.00000 1500.00000 1500.00000 1500.00000 1500.00000 1328.67460 1490.11486 1335.57677 1476.83198 1216.74873
Load DE - -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 ... -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000 -5000.00000
DK - -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 ... -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000 -1000.00000
StorageUnit DE battery -421.18531 -392.41486 -215.56554 -210.39034 -176.68184 -236.31513 -387.11413 -736.23043 -930.56521 -919.05703 ... 148.39283 362.15202 505.06966 589.97212 978.62773 978.62773 624.39409 666.90529 425.05464 592.57029
DK battery -30.75299 -272.64874 -272.64874 -272.64874 -272.64874 -272.64874 -195.61895 -46.27679 31.68640 60.87969 ... 115.85531 126.49746 123.42981 149.04050 272.64874 57.02067 272.64874 127.05392 272.64874 NaN

8 rows × 24 columns

n.statistics.transmission(groupby_time=False)
snapshot 2015-01-03 00:00:00 2015-01-03 01:00:00 2015-01-03 02:00:00 2015-01-03 03:00:00 2015-01-03 04:00:00 2015-01-03 05:00:00 2015-01-03 06:00:00 2015-01-03 07:00:00 2015-01-03 08:00:00 2015-01-03 09:00:00 ... 2015-01-03 14:00:00 2015-01-03 15:00:00 2015-01-03 16:00:00 2015-01-03 17:00:00 2015-01-03 18:00:00 2015-01-03 19:00:00 2015-01-03 20:00:00 2015-01-03 21:00:00 2015-01-03 22:00:00 2015-01-03 23:00:00
component carrier
Line AC 1500.0 1500.0 1500.0 1500.0 1500.0 1500.0 1500.0 1500.0 1500.0 1500.0 ... 1500.0 1500.0 1500.0 1500.0 1500.0 1328.6746 1490.11486 1335.57677 1476.83198 1216.74873

1 rows × 24 columns

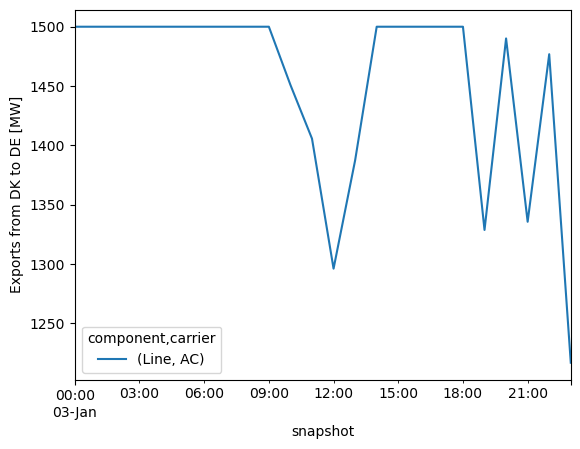

n.statistics.transmission(groupby_time=False).T.plot(ylabel="Exports from DK to DE [MW]")

<Axes: xlabel='snapshot', ylabel='Exports from DK to DE [MW]'>
_images/b93e57ebbc38b43ea12ed4c11c1fed7e1f8857d9c5cd28b6848ff69426628773.png
n.snapshots

DatetimeIndex(['2015-01-03 00:00:00', '2015-01-03 01:00:00',
               '2015-01-03 02:00:00', '2015-01-03 03:00:00',
               '2015-01-03 04:00:00', '2015-01-03 05:00:00',
               '2015-01-03 06:00:00', '2015-01-03 07:00:00',
               '2015-01-03 08:00:00', '2015-01-03 09:00:00',
               '2015-01-03 10:00:00', '2015-01-03 11:00:00',
               '2015-01-03 12:00:00', '2015-01-03 13:00:00',
               '2015-01-03 14:00:00', '2015-01-03 15:00:00',
               '2015-01-03 16:00:00', '2015-01-03 17:00:00',
               '2015-01-03 18:00:00', '2015-01-03 19:00:00',
               '2015-01-03 20:00:00', '2015-01-03 21:00:00',
               '2015-01-03 22:00:00', '2015-01-03 23:00:00'],
              dtype='datetime64[ns]', name='snapshot', freq=None)

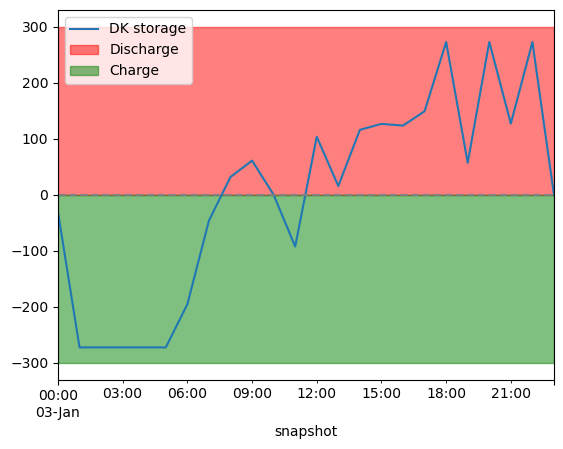

fig, ax = plt.subplots()
n.storage_units_t.p["DK storage"].plot(ax=ax)
ax.hlines(0, xmin=n.snapshots[0], xmax=n.snapshots[-1], ls = "dashed", color="grey")

ax.fill_between(bat_dis.index, 300, color="red", alpha=0.5, label="Discharge")
ax.fill_between(bat_ch.index, -300, color="green", alpha=0.5, label="Charge")
ax.legend()

<matplotlib.legend.Legend at 0x317d3f610>
_images/5b740979f617d5f4399739b3c8fbed2d513563a13448afe1d6b8c6494e6b4c25.png
n.statistics.prices()

name
DK    7842.54255
DE    9125.27870
Name: objective, dtype: float64

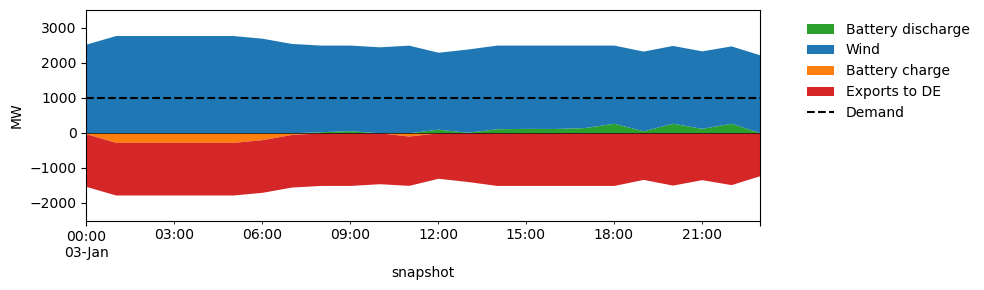

# Add dispatch plot (DK) and include exports to DE.

fig, ax = plt.subplots(figsize=(10, 3))
bat_dis = n.storage_units_t.p["DK storage"].clip(lower=0)  # positive: discharge
bat_ch  = n.storage_units_t.p["DK storage"].clip(upper=0)  # negative: charging
exports = n.lines_t.p0["DK-DE"].clip(lower=0)  # positive values mean exports
imports = n.lines_t.p0["DK-DE"].clip(upper=0)  # negative values mean imports
# Stack wind + OCGT + battery discharge together above 0
supply = pd.concat([
    pd.DataFrame(bat_dis).rename(columns={"DK storage": "Battery discharge"}),
    pd.DataFrame(n.generators_t.p["DK wind"]).rename(columns={"DK wind": "Wind"}),
], axis=1)
supply.plot.area(ax=ax, linewidth=0, stacked=True,
                 color=["#2ca02c", "#1f77b4", "#d62728"])
# Battery charging below 0 (separate call is fine here — it naturally starts from 0 and goes negative)
withdrawal = pd.concat([
    pd.DataFrame(bat_ch).rename(columns={"DK storage": "Battery charge"}),
    -pd.DataFrame(exports).rename(columns={"DK-DE": "Exports to DE"}), # exports mean withdrawal
], axis=1)
withdrawal.plot.area(ax=ax, linewidth=0, stacked=True, color=["#ff7f0e", "#d62728"])
# Demand
n.loads_t.p_set["DK load"].plot(ax=ax, color="black", linestyle="--", label="Demand")

ax.axhline(0, color="black", linewidth=0.5)
ax.set_ylabel("MW")
ax.set_ylim(-2500, 3500)
ax.legend(frameon=False, bbox_to_anchor=(1.05, 1))
plt.tight_layout()

/opt/homebrew/Caskroom/miniforge/base/envs/integrated-energy-grids/lib/python3.13/site-packages/pandas/plotting/_matplotlib/core.py:1800: UserWarning:

Attempting to set identical low and high ylims makes transformation singular; automatically expanding.
_images/caf90bcf8aac1ba1417dd7b575816b74b2df7c26cf2e43f0643d6e3c26f2539c.png

For the total system we can use a simpler area plot as well (or with some modifications we can also do the same for the upper):

n.statistics.energy_balance.plot.area()

(<Figure size 745.25x300 with 1 Axes>,
 <Axes: xlabel='snapshot', ylabel='Energy Balance'>,
 <seaborn.axisgrid.FacetGrid at 0x317bbfe00>)
_images/5dc51bb4a3629e85a8cddc498bce1e5d0ac488b9ac4f5086d458a29c1f9c40b4.png

Economics#

n.statistics.system_cost().sum()

np.float64(1283971972.5246902)

n.statistics.capex()

component    carrier
Generator    Onshore wind    1.156289e+09
StorageUnit  battery         1.276828e+08
dtype: float64

n.statistics.opex()

Series([], dtype: float64)

n.statistics.revenue()

component    carrier
Generator    Onshore wind    1.156289e+09
Line         AC              4.713123e+07
Load         -              -1.331103e+09
StorageUnit  battery         1.276828e+08
dtype: float64

Marginal prices#

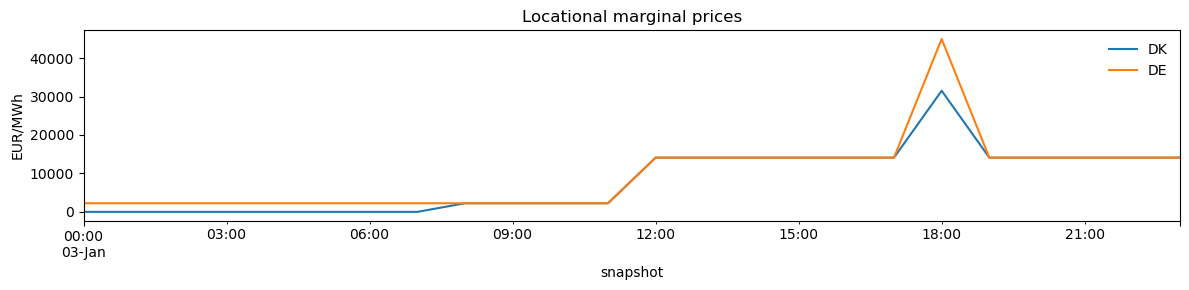

fig, ax = plt.subplots(figsize=(12, 3))
n.statistics.prices(groupby_time=False).T.plot(ax=ax)
ax.set_ylabel('EUR/MWh')
ax.set_title('Locational marginal prices')
ax.legend(frameon=False)
plt.tight_layout()
_images/7b69f6a21de50c176e2547f97aa5c13ee60770ede1a81e5cc12820a515e850db.png
n.buses_t.marginal_price
name DK DE
snapshot
2015-01-03 00:00:00 0.000000 2244.344241
2015-01-03 01:00:00 0.000000 2244.344241
2015-01-03 02:00:00 0.000000 2244.344241
2015-01-03 03:00:00 0.000000 2244.344241
2015-01-03 04:00:00 0.000000 2244.344241
2015-01-03 05:00:00 0.000000 2244.344241
2015-01-03 06:00:00 0.000000 2244.344241
2015-01-03 07:00:00 0.000000 2244.344241
2015-01-03 08:00:00 2244.344241 2244.344241
2015-01-03 09:00:00 2244.344241 2244.344241
2015-01-03 10:00:00 2244.344241 2244.344241
2015-01-03 11:00:00 2244.344241 2244.344241
2015-01-03 12:00:00 14107.856748 14107.856748
2015-01-03 13:00:00 14107.856748 14107.856748
2015-01-03 14:00:00 14107.856748 14107.856748
2015-01-03 15:00:00 14107.856748 14107.856748
2015-01-03 16:00:00 14107.856748 14107.856748
2015-01-03 17:00:00 14107.856748 14107.856748
2015-01-03 18:00:00 31502.716261 44968.781708
2015-01-03 19:00:00 14107.856748 14107.856748
2015-01-03 20:00:00 14107.856748 14107.856748
2015-01-03 21:00:00 14107.856748 14107.856748
2015-01-03 22:00:00 14107.856748 14107.856748
2015-01-03 23:00:00 14107.856748 14107.856748

Further reading#

Contents
