Problem 8.4

Integrated Energy Grids

Problem 8.4

In this problem, we will model a node that contains an electricity, a gas and a heat bus. There is a demand of 50 MWh of electricity and 40 MWh of heat. Electricity can be produced using an Open Cycle Gas Turbine (OCGT) with an efficiency of 0.35 or using a Combined Heat and Power (CHP) unit. Heat can be produced with the CHP unit or with a gas boiler. The gas boiler has an efficiency of 0.9. The OCGT, gas boiler and CHP unit have a marginal cost due to the fuel cost of 20 EUR/MWh\(_{th}\)

(a) In this section, we assume that the CHP has a fixed efficiency of 0.3 when producing electricity and 0.3 when producing heat. Model the OCGT and gas boiler, using a link and the CHP unit using and multilink element in PyPSA. Add a gas store to the gas bus that represents an unlimited supply of gas. Optimize the system and calculate which technologies are supplying the electricity and heat demand.

(b) In this section, we assume that the CHP unit can be operated either in condensing mode or in back-pressure mode. In practice, this means the feasible space for operating the CHP unit is determined by the iso-fuel lines (with constant \(c_v\)=-0.15) and the back-pressure line (with constant \(c_m\)=0.75). Optimize the system and calculate which technologies are supplying the electricity and heat demand.

Note: This problem is based on the PyPSA exampler Backpressure CHP and Extraction-condensing CHP

Note

If you have not yet set up Python on your computer, you can execute this tutorial in your browser via Google Colab. Click on the rocket in the top right corner and launch “Colab”. If that doesn’t work download the .ipynb file and import it in Google Colab.

Then install the following packages by executing the following command in a Jupyter cell at the top of the notebook.

!pip install numpy pypsa

We start by creating the network and adding the buses and loads.

import pypsa
import matplotlib.pyplot as plt
import numpy as np
%matplotlib inline

Set parameter Username
Set parameter LicenseID to value 2767832
Academic license - for non-commercial use only - expires 2027-01-20

network = pypsa.Network()

network.add("Bus", "electricity")
network.add("Load", "electricity load", bus="electricity", p_set=50)

network.add("Bus", "heat")
network.add("Load", "heat load", bus="heat", p_set=40)

network.add("Bus", "gas")

# We add a gas store with energy capacity and an initial filling level much higher than the required gas consumption,
# this way gas supply is unlimited
network.add("Store", "gas", e_initial=1e6, e_nom=1e6, bus="gas")

network.buses

	v_nom	type	x	y	carrier	unit	location	v_mag_pu_set	v_mag_pu_min	v_mag_pu_max	control	generator	sub_network
name
electricity	1.0		0.0	0.0	AC			1.0	0.0	inf	PQ
heat	1.0		0.0	0.0	AC			1.0	0.0	inf	PQ
gas	1.0		0.0	0.0	AC			1.0	0.0	inf	PQ

We add the links representing the OCGT and the CHP. For the later, we can use a multilink, that is a link that outputs to two buses (electricity and heating).

network.add(
    "Link",
    "OCGT",
    bus0="gas",
    bus1="electricity",
    p_nom=1000,
    marginal_cost=20,
    efficiency=0.35,
)

network.add(
    "Link",
    "gas boiler",
    bus0="gas",
    bus1="heat",
    marginal_cost=20,
    p_nom=1000,
    efficiency=0.9,
)

network.add(
    "Link",
    "CHP",
    bus0="gas",
    bus1="electricity",
    bus2="heat",
    p_nom=1000,
    marginal_cost=20,
    efficiency=0.3,
    efficiency2=0.3,
)

network.links

	bus0	bus1	type	carrier	efficiency	active	build_year	lifetime	p_nom	p_nom_mod	...	min_down_time	up_time_before	down_time_before	ramp_limit_up	ramp_limit_down	ramp_limit_start_up	ramp_limit_shut_down	p_nom_opt	bus2	efficiency2
name
OCGT	gas	electricity			0.35	True	0	inf	1000.0	0.0	...	0	1	0	NaN	NaN	1.0	1.0	0.0		NaN
gas boiler	gas	heat			0.90	True	0	inf	1000.0	0.0	...	0	1	0	NaN	NaN	1.0	1.0	0.0		NaN
CHP	gas	electricity			0.30	True	0	inf	1000.0	0.0	...	0	1	0	NaN	NaN	1.0	1.0	0.0	heat	0.3

3 rows × 37 columns

network.optimize();

WARNING:pypsa.consistency:The following buses have carriers which are not defined:
Index(['electricity', 'heat', 'gas'], dtype='object', name='name')
WARNING:pypsa.consistency:The following links have carriers which are not defined:
Index(['OCGT', 'gas boiler', 'CHP'], dtype='object', name='name')
WARNING:pypsa.consistency:Encountered nan's in static data for columns ['efficiency2'] of component 'Link'.
WARNING:pypsa.consistency:The following stores have carriers which are not defined:
Index(['gas'], dtype='object', name='name')
INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.io: Writing time: 0.04s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 5 primals, 12 duals
Objective: 3.24e+03
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Link-fix-p-lower, Link-fix-p-upper, Store-fix-e-lower, Store-fix-e-upper, Store-energy_balance were not assigned to the network.

Running HiGHS 1.12.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms
LP linopy-problem-d3evm15y has 12 rows; 5 cols; 18 nonzeros
Coefficient ranges:
  Matrix  [3e-01, 1e+00]
  Cost    [2e+01, 2e+01]
  Bound   [0e+00, 0e+00]
  RHS     [4e+01, 1e+06]
Presolving model
0 rows, 0 cols, 0 nonzeros  0s
0 rows, 0 cols, 0 nonzeros  0s
Presolve reductions: rows 0(-12); columns 0(-5); nonzeros 0(-18) - Reduced to empty
Performed postsolve
Solving the original LP from the solution after postsolve

Model name          : linopy-problem-d3evm15y
Model status        : Optimal
Objective value     :  3.2380952381e+03
P-D objective error :  0.0000000000e+00
HiGHS run time      :          0.00

network.loads_t.p

name	electricity load	heat load
snapshot
now	50.0	40.0

network.links_t.p0

name	OCGT	gas boiler	CHP
snapshot
now	28.571429	-0.0	133.333333

network.links_t.p1

name	OCGT	gas boiler	CHP
snapshot
now	-10.0	0.0	-40.0

network.links_t.p2

name	OCGT	gas boiler	CHP
snapshot
now	0.0	0.0	-40.0

(b) In this section, we assume that the CHP unit can be operated either in condensing mode or in back-pressure mode. In practice, this means the feasible space for operating the CHP unit is determined by the iso-fuel lines (with constant \(c_v\)=-0.15) and the back-pressure line (with constant \(c_m\)=0.75). Optimize the system and calculate which technologies are supplying the electricity and heat demand.

Combined-Heat-and-Power (CHP) parameterisation

The parameters describing the operation of the CPH unit follow https://doi.org/10.1016/0301-4215(93)90282-K

# backpressure limit
c_m = 0.75

# marginal loss of electricity generation for each additional generation of heat
c_v = 0.15

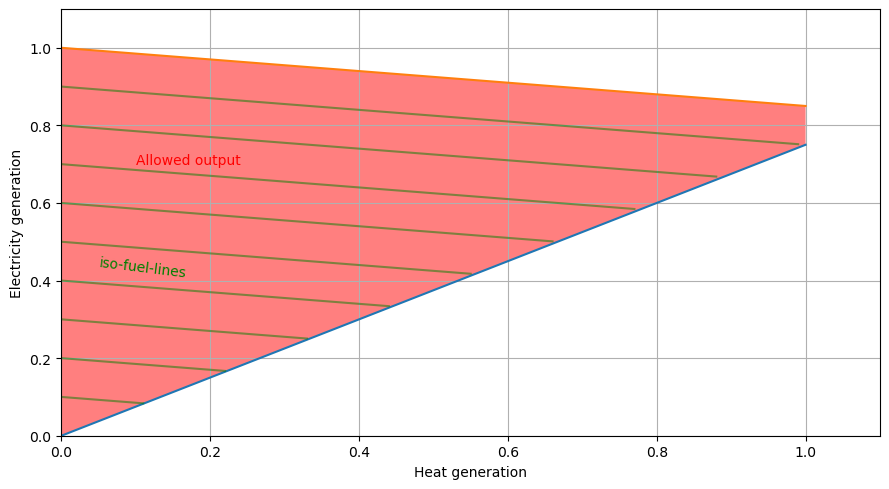

We can plot a figure that shows the operating space of the CHP units

fig, ax = plt.subplots(figsize=(9, 5))

t = 0.01
ph = np.arange(0, 1.0001, t)

ax.plot(ph, c_m * ph)
ax.set_xlabel("Heat generation")
ax.set_ylabel("Electricity generation")
ax.grid(True)

ax.set_xlim([0, 1.1])
ax.set_ylim([0, 1.1])
ax.text(0.1, 0.7, "Allowed output", color="r")
ax.plot(ph, 1 - c_v * ph)

for i in range(1, 10):
    k = 0.1 * i
    x = np.arange(0, k / (c_m + c_v), t)
    ax.plot(x, k - c_v * x, color="g", alpha=0.5)

ax.text(0.05, 0.41, "iso-fuel-lines", color="g", rotation=-7)
ax.fill_between(ph, c_m * ph, 1 - c_v * ph, facecolor="r", alpha=0.5)

fig.tight_layout()

We can build the network and add the buses, loads and links representing the OCGT and CHP unit. We use two idependent link to represent the generation of electricity and heat in the CHP unit and later we will impose constraints limiting the feasible space (as shown in the figure above).

network = pypsa.Network()

network.add("Bus", "electricity")
network.add("Load", "electricity load", bus="electricity", p_set=50)

network.add("Bus", "heat")
network.add("Load", "heat load", bus="heat", p_set=40)

network.add("Bus", "gas")

# We add a gas store with energy capacity and an initial filling level much higher than the required gas consumption,
# this way gas supply is unlimited
network.add("Store", "gas", e_initial=1e6, e_nom=1e6, bus="gas")


network.add(
    "Link",
    "OCGT",
    bus0="gas",
    bus1="electricity",
    p_nom=1000,
    marginal_cost=20,
    efficiency=0.35,
)

network.add(
    "Link",
    "CHP generator",
    bus0="gas",
    bus1="electricity",
    efficiency=0.3,
    p_nom=1000,
    marginal_cost=20,
)

network.add(
    "Link",
    "CHP boiler",
    bus0="gas",
    bus1="heat",
    p_nom=1000,
)


network.add(
    "Link",
    "gas boiler",
    bus0="gas",
    bus1="heat",
    marginal_cost=20,
    p_nom=1000,
    efficiency=0.9,
)

network.loads

	bus	carrier	type	p_set	q_set	sign	active
name
electricity load	electricity			50.0	0.0	-1.0	True
heat load	heat			40.0	0.0	-1.0	True

We add the CHP constraints to limite the feasible operation space

# Guarantees isofuel lines, i.e. increase in heat generation is proportional to decrease in electricity generation
network.links.at["CHP boiler", "efficiency"] = (network.links.at["CHP generator", "efficiency"] / c_v)

model = network.optimize.create_model()

link_p = model.variables["Link-p"]

# Guarantees back-pressure line
model.add_constraints(
    c_m * network.links.at["CHP boiler", "efficiency"] * link_p.sel(Link="CHP boiler")
    - network.links.at["CHP generator", "efficiency"] * link_p.sel(Link="CHP generator")
    <= 0,
    name="backpressure",)


# Guarantees top iso fuel line
model.add_constraints(
    link_p.sel(Link="CHP boiler") + link_p.sel(Link="CHP generator")
    - network.links.at["CHP generator", "p_nom"]
    <= 0,
    name="top_iso_fuel_line",
)

network.optimize.solve_model()

WARNING:pypsa.consistency:The following buses have carriers which are not defined:
Index(['electricity', 'heat', 'gas'], dtype='object', name='name')
WARNING:pypsa.consistency:The following links have carriers which are not defined:
Index(['OCGT', 'CHP generator', 'CHP boiler', 'gas boiler'], dtype='object', name='name')
WARNING:pypsa.consistency:The following stores have carriers which are not defined:
Index(['gas'], dtype='object', name='name')
INFO:linopy.model: Solve problem using Highs solver
INFO:linopy.io: Writing time: 0.04s
INFO:linopy.constants: Optimization successful:
Status: ok
Termination condition: optimal
Solution: 6 primals, 16 duals
Objective: 3.14e+03
Solver model: available
Solver message: Optimal

INFO:pypsa.optimization.optimize:The shadow-prices of the constraints Link-fix-p-lower, Link-fix-p-upper, Store-fix-e-lower, Store-fix-e-upper, Store-energy_balance, backpressure, top_iso_fuel_line were not assigned to the network.

Running HiGHS 1.12.0 (git hash: n/a): Copyright (c) 2025 HiGHS under MIT licence terms
LP linopy-problem-j6ta9aqt has 16 rows; 6 cols; 25 nonzeros
Coefficient ranges:
  Matrix  [3e-01, 2e+00]
  Cost    [2e+01, 2e+01]
  Bound   [0e+00, 0e+00]
  RHS     [4e+01, 1e+06]
Presolving model
1 rows, 2 cols, 2 nonzeros  0s
0 rows, 0 cols, 0 nonzeros  0s
Presolve reductions: rows 0(-16); columns 0(-6); nonzeros 0(-25) - Reduced to empty
Performed postsolve
Solving the original LP from the solution after postsolve

Model name          : linopy-problem-j6ta9aqt
Model status        : Optimal
Objective value     :  3.1428571429e+03
P-D objective error :  0.0000000000e+00
HiGHS run time      :          0.00

('ok', 'optimal')

network.links_t.p1

name	OCGT	CHP generator	CHP boiler	gas boiler
snapshot
now	-20.0	-30.0	-40.0	0.0
